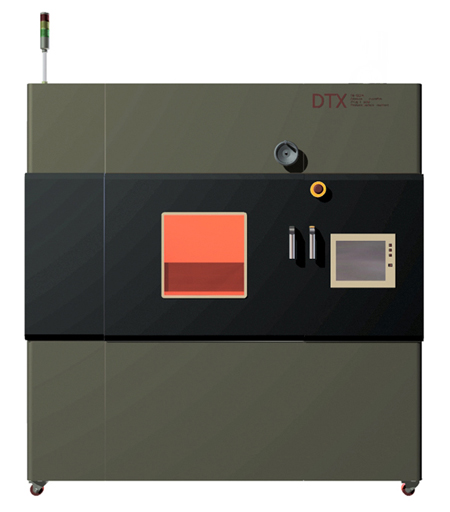

시스템 외관 (APPEARENCE)

 PERFORMANCE

 DARK ROOM TYPE / AUTOMATIC

 DARK ROOM TYPE / MANUAL

  Motion Moving

Detector moving

DUT Stage Moving , Motion Vision

  Detector

DIS 7550

DIS 2000

  DUT Size

1"~ 70"

1"~ 70"

  Motion Axis

X,Y,Z Stage available

X,Y,Z Stage available

  Software

Motion & Detector Control S/W

Motion & Detector Control S/W

 SPECIFICATIONS (휘도카메라 에 대한 내용은 당사 영업부로 별도 문의 하시기 바랍니다)

 DIS 7550

 DIS 2000

OPTICAL UNIT

Objective lens focal length f=12.5mm F1.4 Spot size 7.55mm @ 500mm distance 40.5mm ND filters: 50%, 25% and 12%

Objective lens focal length f=50mm F5.6 Spot size 2.00mm @ 500mm distance 25.5mm ND filters: 50%, 25% and 12%

Dispersing element

Diffraction grating 300 lines/mm

Diffraction grating 300 lines/mm

Photo detector

Linear CCD array – 2048 pixels

Dynamic Dark feature

Linear CCD array – 2048 pixels

Dynamic Dark feature

Measurement angle

Spot size @ 500 mm

1° FOV

7.55mm diameter

0.25° FOV

2.00mm diameter

Measurement distance

300mm - ∞ (distance from metal edge of lens mount)

440mm - ∞ (distance from metal edge of lens mount)

Wavelength range

Luminance: 380 nm ~ 780 nm

Full range: 250 nm ~ 1100 nm

Luminance: 380 nm ~ 780 nm

Full range: 250 nm ~ 1100 nm

Spectral bandwidth

n/a

n/a

Wavelength resolution

1.2 nm

1.2 nm

Wavelength Accuracy

±0.25nm (for 435 nm Hg)

±0.25nm (for 435 nm Hg)

Measurement mode

Multiple UNIT’s per computer

External vertical sync signal Input

Multiple UNIT’s per computer

External vertical sync signal input

Measurement Capability

x, y, Lv, / u´,v´, Lv / X, Y, Z /

·Tc, Duv, Lv, Le (W/sr-m2)·/ CIE 2° / 10°

x, y, Lv, / u´,v´, Lv / X, Y, Z /

·Tc, Duv, Lv, Le (W/sr-m2)·/ CIE 2° / 10°

Accuracy in luminance

Luminance: ±2.0%,

Chromaticity ±0.002

Special upgrade to FC connector required

Luminance: ±2.0%,

Chromaticity ±0.002

Special upgrade to FC connector required

Repeatability in luminance / chromaticity

0.2%

0.2%

Accuracy in chromaticity

x, y +/-0.002

x, y +/-0.002

Luminance range for guaranteed accuracy

- Lens f-12.5 F1.4: 10 to 20,000 Cd/m2

With K54-726 filter: 40,000 Cd/m2

With K54-732  filter: 80,000 Cd/m2

With K54-738  filter: 160,000 Cd/m2

- Lens f-50 F5.6: 10 to 20,000 Cd/m2

With K59-163 filter: 40,000 Cd/m2

With K59-168  filter: 80,000 Cd/m2

With K59-173  filter: 160,000 Cd/m2

Polarization error

Luminance: 0% (380 -780 nm, Spectral Radiance: 0% (320 - 950nm)

Luminance: 0% (380 -780 nm, Spectral Radiance: 0% (320 - 950nm)

Measurement time

Typically 5 to 10 ms dependent on the Integration Time selected

Typically 5 to 10 ms dependent on the Integration Time selected

Interface

USB 2.0

USB 2.0

Power supply

DC adapter AC100V-240V

50/60 Hz, 0.6A

DC adapter AC100V-240V

50/60 Hz, 0.6A

Power consumption

Approx.: 4.20W (12V - 350 mA)

Approx.: 4.20W (12V - 350 mA)

Operating condition

Temperature 5-35 °C

Humidity: 80% RH or less (no condensation)

Temperature 5-35 ºC

Humidity: 80% RH or less (no condensation)
