ILT 5000 WIRELESS RESEARCH RADIOMETER

"The ILT1700 for the 21st Century"

Improvements on the ILT1700 (IL1700) include rapid measurements (1-100hz), broader dynamic range (100fA to 1mA), extensive supporting software apps, and built-in wireless, data storage, rechargeable batteries!
Plus ALL IL/ILT1700 Detectors, Filters, Optics Are Compatible with ILT5000!

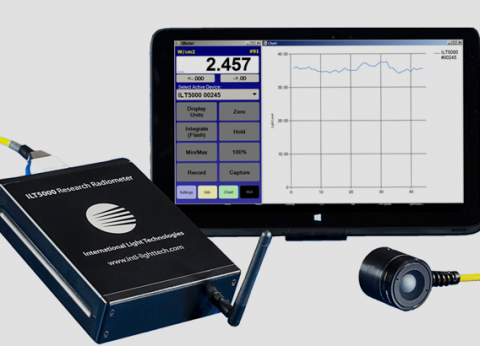

ILT5000 Research Radiometer

(Software included - Tablet sold separately)

10 Decade Dynamic Range of Optical Analysis
Also Highly Sensitive, Accurate Picoammeter
Made in USA
Wireless transmitter, built-in
* Order ILT5000A for Non-Wireless Version
Backwards Compatible with ILT1700 (IL1700) SED Detectors, Filters & Optics
Autorange, Autodark, Auto-sample with User Control Options
4-20 mA output
“Set it & Forget It” Remote Data Logging
Built-in Re-Chargeable Battery Pack
Multi-System Simultaneous Continuous Monitoring
DataLight II Complementary Light Measurement and Data Collection Software Apps
Labview Compatible
NIST-Traceable/ISO17025 Accredited Calibration and Certificate
Sample Rate Up to 100 Hz, Programmable
Custom & OEM Inquiries Welcome

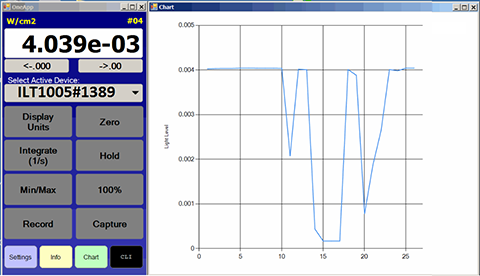

ILT5000 Meter Readout on PC/Tablet Screen

ILT5000 Trend Analysis on PC/Tablet Screen

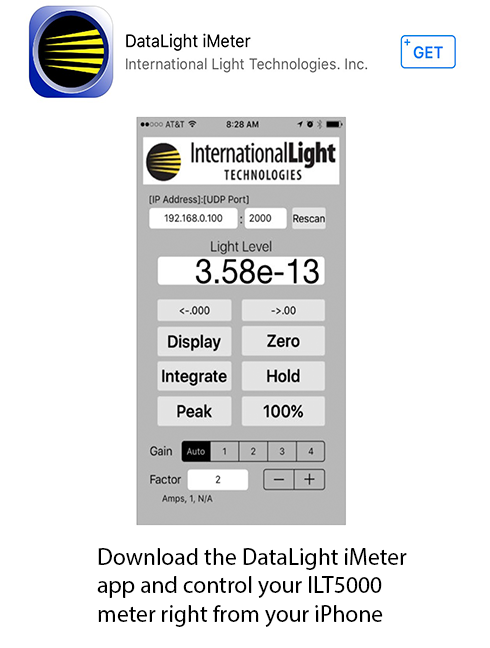

ILT5000 DataLight iMeter

TECHNICAL SPECIFICATIONS

Meter:

Measurement Range: 100 fA – 1 mA
Reverse Bias: (2 Voltages/selectable)
Automatic Ranging: Rapid switching through all current levels
WiFi: Enabled
Operating Temperature: -40 to 85°C (Calibrated Irradiance 0-40°C)
USB: USB2, Including Power, for Single and Multiple Systems
USB Current Draw: 500 mA max, 250 mA typical
Size: 1-3/5” H x 5” W x 7” L
Input connector: D-Sub and/or SMA.
CE certified: No rf/noise

Software:

CLI: Command line interface sent over a serial port
Trigger: TTL, for synchronization of measurement**
Data Storage: Internal (includes units, date and time stamps)
Time Line: Scheduled data acquisition
Integration Range: Unlimited dosage/exposure
Transmission/Reflectance: (100%)
Optical Density: 0.00 to 4.00
Zero: (Dark or ambient subtraction)
Direct Reading: Current or calibrated optical units
Apps: Meters, CLI, Bar, Trend and Reports apps all included

** Coming soon: TTL trigger

ILT5000 with Tablet PC and Optional Optics

ILT5000 Research Radiometer with Optional Optics (Tablet and Optics sold separately)

Minimum Computer System Requirements:

Tablet: Minimum 8" tablet
Operating System: Windows 7 or 8
Memory/RAM: Minium 1 GB RAM (on board)
Storage: 32GB (flash or SSD)
Processor: at least 1.83GHz (with minimum 2MB Cache)
Ports: 1 Micro-USB 2.0 Port
Wi-Fi® Wireless networking (802.11b/g/n)
Bluetooth® v 4.0

Also Recommended:

Micro SD/SDHC/SDXC Card slot (for extra storage, data offloading/backup)
OTG Cable (Micro-USB 2.0 to USB 2.0; for applying program updates as needed)
Micro-USB to Ethernet Cable for Non-wireless Network Connectivity, if desired)

DataLight II Software

The ILT5000 comes with a complementary Labview DLL sample code, an extensive API and ILT’s DataLight II light measurement and data collection software.

METERS - Designed to maintain the look and feel of the Industry Standard ILT1700 Research Radiometer. Designed for wireless use with windows 8 tablets and touch screen computers, the larger, user-friendly panel includes buttons for hold, zero, integrate, factor, range, average and units selection.

ILT5000 Meters Software Example

TREND - Records all 6 parameters while displaying the trend over time for the user switchable parameter. Multiple examples of trend can be run simultaneously to allow multi-unit comparisons. Trend also has a user-friendly calibration feature.

ILT5000 TREND Software Example

BAR - Allows multisystem, datalogging and displays the user switchable parameter in a bar graph. The expandable graph can accommodate up to 32 systems simultaneously with use of hub(s). User can enter nicknames for each unit to define the location, application, version, serial number, etc. Customer can program max and min warning levels and use color coded bar responses for easy troubleshooting.

ILT5000 BAR Software Example

CLI is a very basic command line interface program that allows customer to type commands from the API and record readings into the device memory.
Datalog is a user interface that allows remote ”set it and forget it” datalogging.

ILT1000 & ILT5000 Sampling & Data Transfer Rates
