ILT 1000 WIRELESS LIGHT METER, DATA LOGGER, MONITOR





"Small Profile, Wireless Capabilities, Improved Data Logging Software for Use with Multiple ILT1000s"







Wired & WIRELESS Versions Available Ideal for Performing Multi-Point, Wireless, Remote Light Monitoring & Data Logging “Set It & Forget It” Remote Data Logging with On-Board Data Storage Multi-System Continuous Monitoring (up to 32 systems with one hub) 4 Customer-Configurable Software Options 6 Decade Dynamic Range of Optical Analysis Autorange, Autodark with Manual Control Options 4-20 mA Output Auto-Sample Rate Configuration to Reduce Noise NIST-Traceable Calibration and Certificate Many Pre-Configured Application-Specific Detector/Filter/Optics Combinations Available Custom and OEM Version Inquiries Welcome

ILT1000 Meter Readout on PC/Tablet Screen    ILT1000 Trend Analysis on PC/Tablet Screen    ILT1000 Bar Analysis on PC/Tablet Screen







TECHNICAL SPECIFICATIONS



Choose From 5 Detector Configurations Covering UV to NIR: ILT1254 UVC: Silicon diode/built in 254 nm filter, 249-259 nm ILT1320 UV: GaN diode 200-320 nm ILT1005 UV-VIS: GaAsp 250-675 nmV ILT1000 Broadband: Silicon diode 200-1100 nm ILT1007 IR: InGaAs diode, 850-1700 nm Plus ILT1000-OEM: ILT1000 for Custom Ranges   Six Decades of Light Sensitivity Optical Density: 0.00 to 4.00 Optical Density Optical Density Repeatability: (single) ± 1%, (multiple) ± 2.5% Operating temperature: -40 to 85 °C (calibrated irradiance 0-50 °C) USB: USB2, Including Power, for Single and Multiple Systems USB Current Draw: 200 mA Max, 130mA Typical Simple, Well Documented API for Custom Programming Size: 76.2 x 76.2 x 25.4 mm (3" x 3" x 1") Weight: 173 g (less than 0.5 lbs)

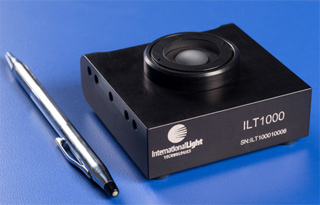

ILT1000 Unit Shown with Cross® Ink Pen Small Size Allows Easy Integration in Customer Systems Unit Size: 76.2 mm x 76.2 mm x 25.4 mm (3" x 3" x 1")







DataLight II Software



The ILT1000 comes with a complementary Labview DLL sample code, an extensive API and ILT’s DataLight II light measurement and data collection software.





METERS - Designed to maintain the look and feel of the Industry Standard ILT1700 Research Radiometer. Designed for wireless use with Windows 8 tablets and touch screen computers, the larger, user-friendly panel includes buttons for hold, zero, integrate, factor, range, average and units selection. (ILT1000 Application Note #2 - Wireless Light-Level Monitoring)







TREND - Records all 6 parameters while displaying the trend over time for the user switchable parameter. Multiple examples of trend can be run simultaneously to allow multi-unit comparisons. Trend also has a user-friendly calibration feature.







BAR - Allows multisystem, datalogging and displays the user switchable parameter in a bar graph. The expandable graph can accommodate up to 32 systems simultaneously with use of hub(s). User can enter nicknames for each unit to define the location, application, version, serial number, etc. Customer can program max and min warning levels and use color coded bar responses for easy troubleshooting.



CLI is a very basic command line interface program that allows customer to type commands from the API and record readings into the device memory.
Datalog is a user interface that allows remote ”set it and forget it” datalogging.
