UV CURING "LIGHT BUGS"

The rugged, highly polished detector housing is machined from solid aluminum, with high "g" force mounts on all critical components, providing production line durability. The exposed side is highly polished to prevent temperature rise and UV damage associated with high irradiance levels in UV curing ovens.

The IL290A/390C provide deep UV sensitivity with superior long wave rejection, for UVC and UVB curing applications employing broad band sources. Their solar blind vacuum photodiode and filter give a 10,000 to 1 rejection above 365 nm.

The S-5 response vacuumphotodiode and UV filter in the IL390C provide excellent UVA sensitivity with 1000 to 1 rejection to visible and infrared components.

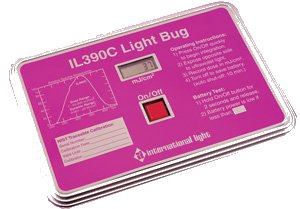

The IL 290A and IL390C Light Bugs



Radiometric:
Dose Range: 1 to 20,000 mJ/cm²
Dynamic Range: IL390C & IL290A: 1x10^-3 to 20 W/cm²

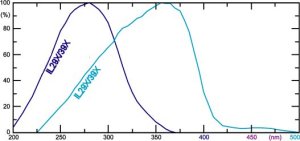

Spectral Range:
          IL390C: 250 to 400 nm (10% power)
          IL290A: 205 to 345 nm (10% power)
Out of Band Rejection:
           IL390C: 1,000: 1 above 450 nm.
           IL290A: 10,000: 1 above 365 nm

Electrical / Mechanical:
Input Power: 2 LiFI batteries
Size: 12.7 x 111 x 161 mm (0.5" x 4.4" x 6.3")
Weight: 341 grams (0.75 lbs)
