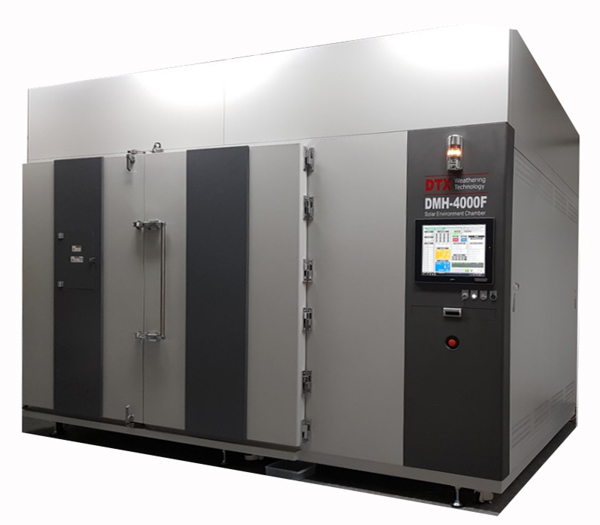

SPECIFICATION

시스템 사이즈 (Dimensions)

2,935 (H) X 2,500 (W) X 3,900 mm (D)

챔버 사이즈 (Chamber Dimensions)

1,800 (H) X 2,200 (W) X 2,400 mm (D)

시스템 내부 면적 (Total Exposure Area)

2200 x 2400 mm, 52,800 cm2

광조사면적 (Total Exposure Area)

1300 x 2000 mm, 26,000 cm2

광원 (Light Source)

Solar Lamp (DSL-4000) - 4 Sets

광원 스펙트럼 (Spectrum Rangel)

280 - 3000 nm

조도 범위 (Irrad. Range)

600 ~ 1200 W/m2

Spectral Mismatch

0.6 ~ 1.4

Light Intensity Uniformity

Within +/-5% @ 1,300 ~ 2,000 mm

Temporal Instability of Irradiance

Within +/- 1%

IEC 60904 Class

Spectrum Mismatch  : Class B

Non Uniformity         : Class B

Stability                 : Class A

광학 필터 (Optical Filter)

Outdoor / Indoor / Air Mass 1.5G

온도제어 뻠위 (Chamber Temperature Control)

-40 ~ 100 C (Automatic)

Temperature and Humidity Control

Automatic

Blower Control

Automatic

습도 제어 (Humidity Control)

25 ~ 95%

워터칠러 용량 (Water Chiller Capacity)

Option

워터 스프레이 (Water / Mist Spray)

Option

시스템 컨트롤러 (System Controller)

Programable Logic Controller

컨트롤 패널 (HMI)

Touch Computer

결선방식 (Wiring Connections)

3 Phase, 3 Wire w/ Ground (3/PE)

사용전압

3 P 380 VAC 150A, 220V 100A

최대 사용전류 (Max. Current)

250 Amps

주파수 (Frequency)

50/60 Hz

최대 사용전력 (Max. Power)

Max. 79 kW

무게 (Weight)

3,500 kg

적용규격 (Standards)

DIN 75220, IEC 60068-2-5. IEC 61215, MIL 810G 505 5, KS R ISO 12097-2
